DC Power Supply

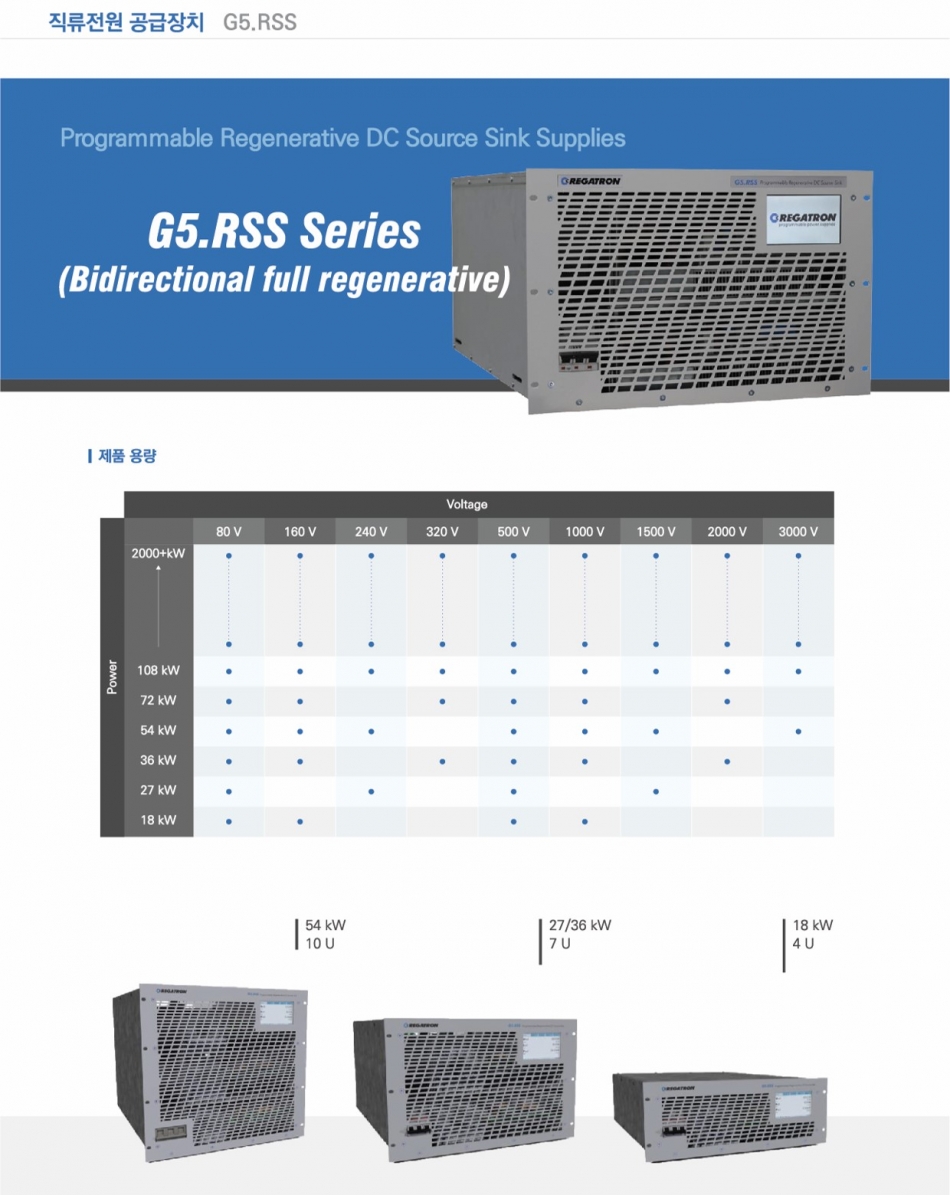

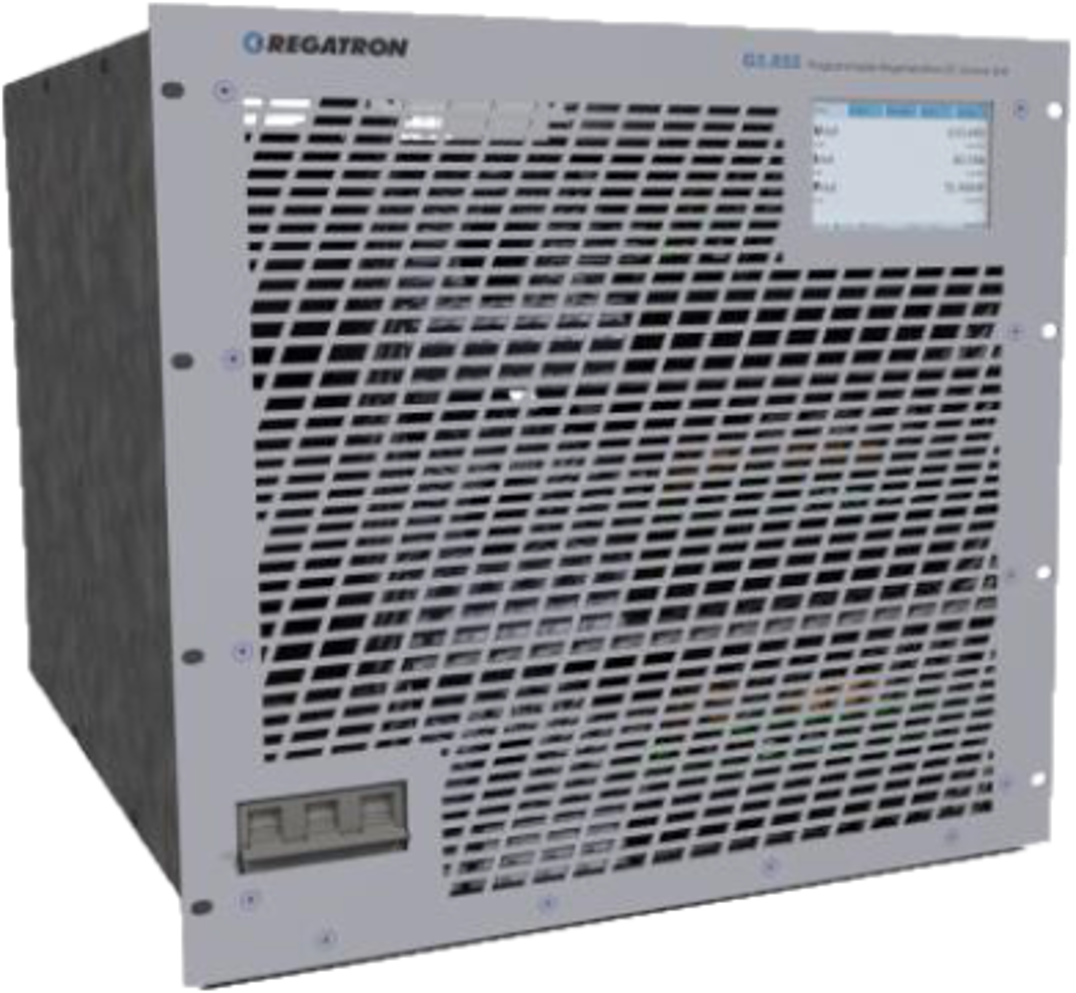

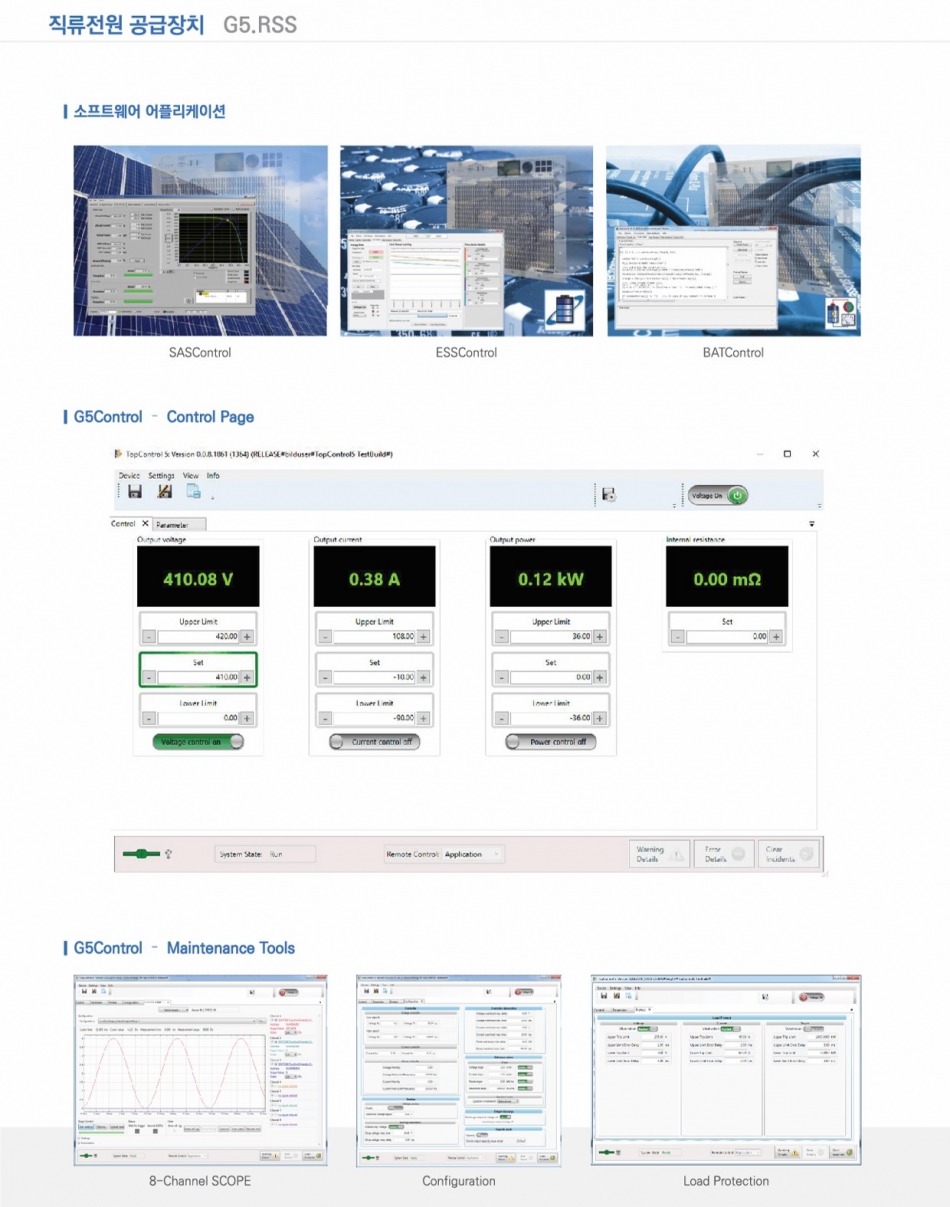

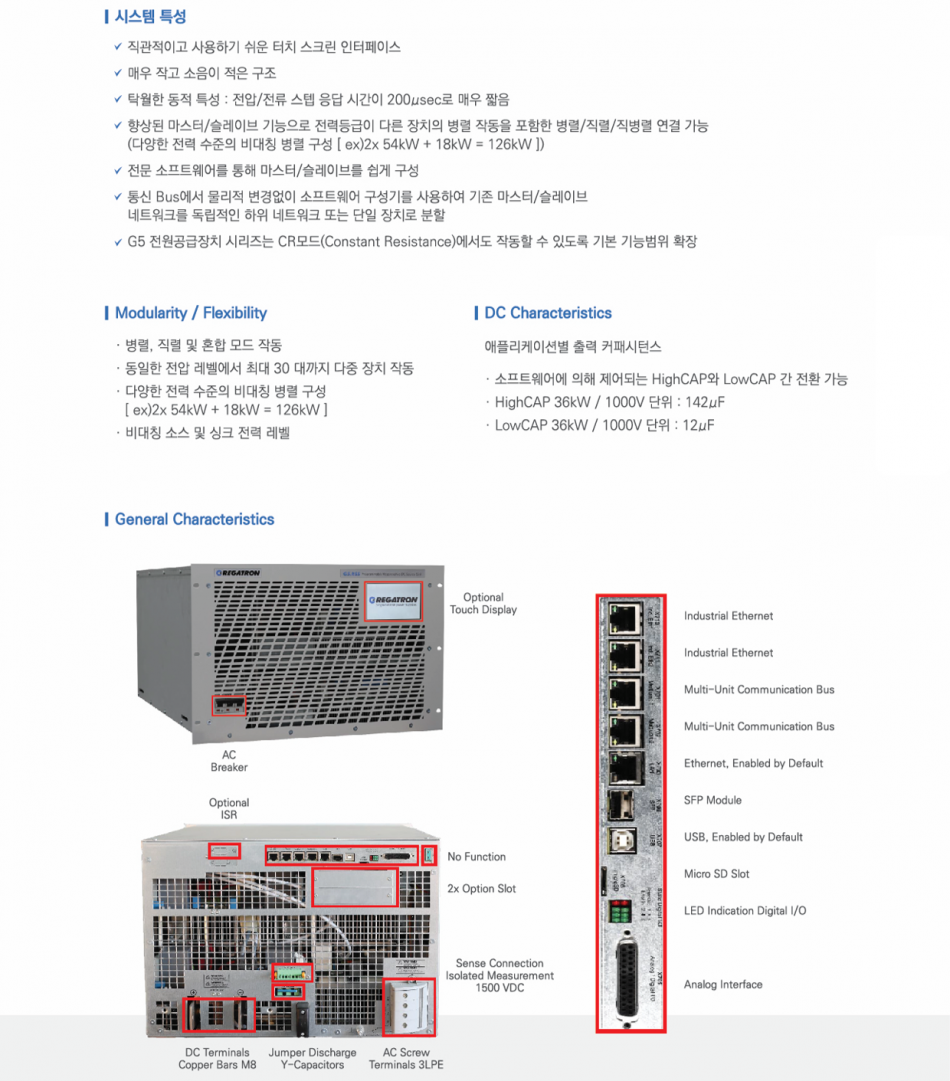

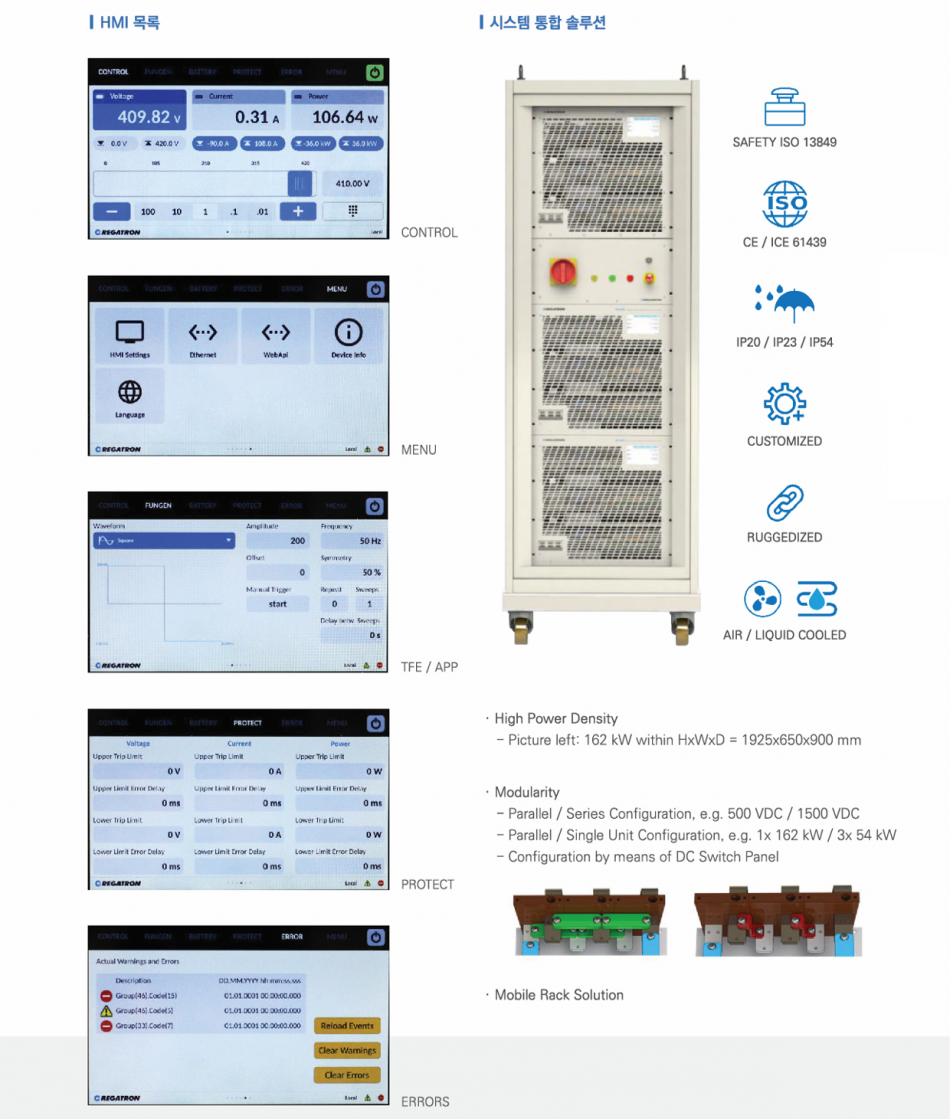

G5.RSS Programmable Bidirectional Full Regenerative DC Power Supplies

• 최대 3000 VDC의 시스템 전압이 가능합니다.

• 광범위한 AC 입력이 가능합니다.

• 최대 3배의 범위를 자동으로 변환합니다.

• LoCap / HiCap 전환이 가능한 DC 필터를 가지고 있습니다.

• Q1 또는 Q4 전용 유형이 사용 가능합니다.

• 완전히 새로운 소형 및 고효율로 설계하였습니다.

• 16 비트 해상도를 가집니다.

• PL e에 따른 안전 수준을 가집니다.

• 완전 부동 감지 입력이 가능합니다.

• 유용한 하드웨어 옵션을 가지고 있습니다.

• 초고속 데이터 링크가 가능합니다.

• 진단 / 적용 범위 기능을 가지고 있습니다.

Product
catalog

User's
Manual

Specification

Order Code	Voltage Range DC Load Side VDC	Power Range DC Load Side kW	Current Range DC Load Side A	Line Voltage 3L VAC	Line Frequency Hz
G5.SRC	(Programmable DC Power Supply)
Master & Slave Units
G5.SRC.18.500.108	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.27.500.162	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.36.500.216	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.54.500.324	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.18.1000.54	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.36.1000.108	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.54.1000.162	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.27.1500.54	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.SRC.54.1500.108	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS	(Solar Array Simulator)
Master Units
G5.SAS.18.500.108.M	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.27.500.162.M	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.36.500.216.M	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.54.500.324.M	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.18.1000.54.M	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.36.1000.108.M	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.54.1000.162.M	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.27.1500.54.M	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.54.1500.108.M	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
Slave Units
G5.SAS.18.500.108.S	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.27.500.162.S	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.36.500.216.S	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.54.500.324.S	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.18.1000.54.S	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.36.1000.108.S	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.54.1000.162.S	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.27.1500.54.S	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.SAS.54.1500.108.S	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD	(Regenerative DC Electronic Load)
Master & Slave Units
G5.RLD.18.500.108	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.27.500.162	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.36.500.216	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.54.500.324	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.18.1000.54	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.36.1000.108	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.54.1000.162	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.27.1500.54	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.RLD.54.1500.108	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.CT	(Charger Test)
Master & Slave Units
G5.CT.18.500.108	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.27.500.162	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.36.500.216	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.54.500.324	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.18.1000.54	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.36.1000.108	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.54.1000.162	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.27.1500.54	1500V	54kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.CT.54.1500.108	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS	(Programmable Regenerative DC Source Sink)
Master & Slave Units
G5.RSS.18.500.108	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.27.500.162	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.36.500.216	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.54.500.324	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.18.1000.54	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.36.1000.108	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.54.1000.162	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.27.1500.54	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.RSS.54.1500.108	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.DT	(DriveTrain Tester)
Master Units
G5.DT.18.500.108.M	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.27.500.162.M	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.36.500.216.M	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.54.500.324.M	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.18.1000.54.M	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.36.1000.108.M	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.54.1000.162.M	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.27.1500.54.M	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.54.1500.108.M	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
Slave Units
G5.DT.18.500.108.S	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.27.500.162.S	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.36.500.216.S	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.54.500.324.S	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.18.1000.54.S	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.36.1000.108.S	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.54.1000.162.S	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.27.1500.54.S	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.DT.54.1500.108.S	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.BS	(Battery Simulator)
Master Units
G5.BS.18.500.108.M	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.27.500.162.M	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.36.500.216.M	500V	36kW	216A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.54.500.324.M	500V	54kW	324A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.18.1000.54.M	1000V	18kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.36.1000.108.M	1000V	36kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.54.1000.162.M	1000V	54kW	162A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.27.1500.54.M	1500V	27kW	54A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.54.1500.108.M	1500V	54kW	108A	3x380 .. 480 V ±10%	50/60Hz
Slave Units
G5.BS.18.500.108.S	500V	18kW	108A	3x380 .. 480 V ±10%	50/60Hz
G5.BS.27.500.162.S	500V	27kW	162A	3x380 .. 480 V ±10%	50/60Hz
