IT-M7700 Performance AC Power Supply > ITECH

Features
♦ 1U half-rack compact design, increased space utilization
♦ AC, DC, AC + DC output modes, DC voltage offset simulation in AC + DC mode
♦ Built-in AC power meter with powerful functions
♦ Built-in abundant waveform database, including 30 harmonic distortion waveforms*1
♦ List mode, simulate civil AC working condition, realize instantaneous power interruption simulation function*1*2
♦ Arbitrary waveform output function, user can customize waveforms*1
♦ Harmonic analysis function*1*5
♦ Harmonic simulation function*1
♦ Surge/Trap function*1
♦ Front and rear edge Dimmer phase dimming function
♦ Settable output waveform start/stop phase angle *1
♦ Higher voltage available by two units in series connection*1*3*4
♦ Three phase output available by three units Y-type external connections*1*3*4

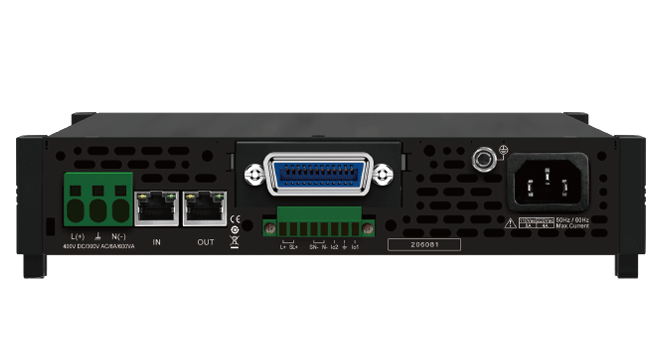

♦ Optional interfaces include RS232, CAN*4, LAN, GPIB,
♦ USB_TMC,USB_VCP, external analog, IO. Flexible and cost effective
♦ With professional software, set up programs comply with multinational security regulations and test conditions, to complete civil aviation electronics and IEC related standards testing*1*4
*1 IT-M7721L/IT-M7722L does not have this function
*2 Realize by PC software
*3 IT-M7723/IT-M7724 does not have this function
*4 Coming soon
*5 Voltage harmonic analysis, current harmonic analysis is coming out

Specification

Application

♦ RD, verification and testing of the small-size power supply production
♦ IEC standard testing
♦ Communications/Telecommunications
♦ AC power simulation
♦ Manufacturing and process control
♦ Battery or LCD applications
♦ ATE testing

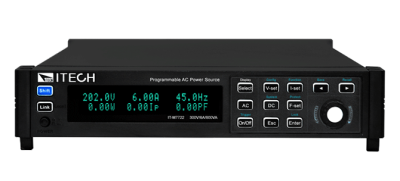

½ 1U Mini size

The conventional AC power supplies are much bigger and heavier, difficult to move. The size of IT-M7700 is only ½ 1U, but its max. power is up to 600VA. Its weight is 4.5kg only. With such high-power density design, the space is better utilized. So it can be portable, convenient for bench testing and good for system building.

Multiple output modes: AC, DC, AC+DC

The output modes of IT-M7700 series include AC, DC, AC+DC. It can not only provide pure AC or DC output but also AC+DC output mode which can expand application fields and test DC offset element.

Surge / Trap Wave Function

IT-M7700 series provide surge and trap wave simulation function. User can add surge/trap wave to the output sine wave accordingly, to

Built-in abundant waveform database

IT-M7700 series has a variety of user-defined waveforms such as square, saw and triangle. There are 30 built-in distortion waveforms for

ITM7700 series has 30 built-in harmonic distortion waveforms
