DC Power Supply

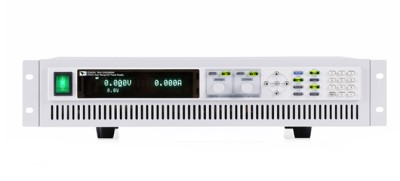

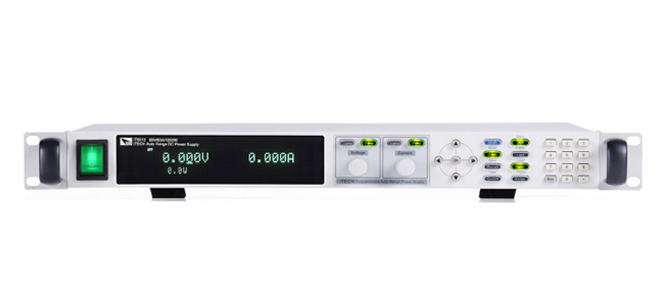

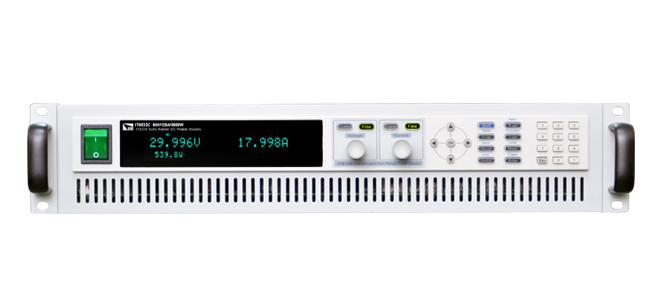

IT6500 Series Wide-range High-power DC Power Supply

ITECH의 최신 기술이 적용된 IT6500 시리즈는 모든 기능을 갖춘 고성능 전력 테스트 솔루션을 제공합니다. 빠른 응답으로이 DC 전원 공급 장치는 사용자에게 새로운 수준의 전원 공급 장치 성능을 제공합니다. 800W에서 30kW까지 전체 시리즈에는 100 개 이상의 모델이 포함됩니다. 최대 출력 전압 및 전류는 각각 최대 1000V 및 1200A입니다. 자동 범위 조정 기능을 통해 매우 광범위한 전압 및 전류 애플리케이션을 제공합니다. 사용자는 테스트 요구 사항에 완벽하게 맞는 전원 공급 장치를 선택할 수 있습니다. IT-E501 전력 소산 장치와 결합하여 IT6500C의 전류 싱킹 용량은 100 %, 200 %, 300 %가 될 수 있으며 전력 싱킹은 소싱 기능의 최대 300 %까지 가능합니다. 고속 2 사분면 전원 공급 장치 인 IT6500C (1800W-30kW) 시리즈는 전원 공급 모드와 전자 부하 모드 간의 고속 전류 전환을 실현하고 소싱 전류와 싱킹 전류 간의 빠른 전환을 달성하기 위해 우선 순위 기능을 가지고 있습니다. 특정 조건에서도 원활한 전환이 가능합니다. IT6512, IT6513 및 IT6500C 시리즈 전원 공급 장치는 내장 DIN40839 및 ISO-16750-2 테스트 곡선을 제공하고 태양 광 패널 I-V 곡선 시뮬레이션 기능을 지원합니다.

Product
catalog

User's
Manual

Specification

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6502D	80V	60A	800W	1mV/1mA	≤0.02%+30mV/ ≤0.1%+0.1%FS	RS232/USB/GPIB/RS485	1U
IT6512	80V	60A	1200W	1mV/1mA	≤0.02%+30mV/ ≤0.1%+0.1%FS	RS232/USB/GPIB/RS485	1U
IT6512A	80V	60A	1200W	1mV/1mA	≤0.02%+30mV/ ≤0.1%+0.1%FS	RS232/USB/GPIB/RS485	1U
IT6513	150V	30A	1200W	3mV/1mA	≤0.05%+30mV ≤0.2%+0.1%FS	RS232/USB/GPIB/RS485	1U
IT6513A	150V	30A	1200W	3mV/1mA	≤0.05%+30mV ≤0.2%+0.1%FS	RS232/USB/GPIB/RS485	1U
IT6512C	80V	120A	1800W	10mV/10mA	≤0.05%+30mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	2U
IT6512D	80V	120A	1800W	10mV/10mA	≤0.05%+30mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	2U
IT6513C	200V	60A	1800W	10mV/10mA	≤0.05%+100mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	2U
IT6513D	200V	60A	1800W	10mV/10mA	≤0.05%+100mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	2U
IT6514C	360V	30A	1800W	10mV/10mA	≤0.05%+135mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	2U
IT6514D	360V	30A	1800W	10mV/10mA	≤0.05%+135mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	2U
IT6515C	500V	20A	1800W	100mV/10mA	≤0.05%+200mV ≤0.2%+20mA	USB/RS232/CAN/GPIB/LAN	2U
IT6515D	500V	20A	1800W	100mV/10mA	≤0.05%+200mV ≤0.2%+20mA	USB/RS232/CAN/GPIB/LAN	2U
IT6516C	750V	15A	1800W	100mV/10mA	≤0.05%+300mV ≤0.2%+15mA	USB/RS232/CAN/GPIB/LAN	2U
IT6516D	750V	15A	1800W	100mV/10mA	≤0.05%+300mV ≤0.2%+15mA	USB/RS232/CAN/GPIB/LAN	2U
IT6517C	1000V	10A	1800W	100mV/1mA	≤0.05%+375mV ≤0.2%+10mA	USB/RS232/CAN/GPIB/LAN	2U
IT6517D	1000V	10A	1800W	100mV/1mA	≤0.05%+375mV ≤0.2%+10mA	USB/RS232/CAN/GPIB/LAN	2U
IT6522C	80V	120A	3kW	10mV/10mA	≤0.05%+30mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	2U
IT6522D	80V	120A	3kW	10mV/10mA	≤0.05%+30mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	2U
IT6523C	200V	60A	3kW	10mV/10mA	≤0.05%+100mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	2U
IT6523D	200V	60A	3kW	10mV/10mA	≤0.05%+100mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	2U
IT6524C	360V	30A	3kW	10mV/10mA	≤0.05%+135mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	2U
IT6524D	360V	30A	3kW	10mV/10mA	≤0.05%+135mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	2U
IT6525C	500V	20A	3kW	100mV/10mA	≤0.05%+200mV ≤0.2%+20mA	USB/RS232/CAN/GPIB/LAN	2U
IT6525D	500V	20A	3kW	100mV/10mA	≤0.05%+200mV ≤0.2%+20mA	USB/RS232/CAN/GPIB/LAN	2U
IT6526C	750V	15A	3kW	100mV/10mA	≤0.05%+300mV ≤0.2%+15mA	USB/RS232/CAN/GPIB/LAN	2U
IT6526D	750V	15A	3kW	100mV/10mA	≤0.05%+300mV ≤0.2%+15mA	USB/RS232/CAN/GPIB/LAN	2U
IT6527C	1000V	10A	3kW	100mV/1mA	≤0.05%+375mV ≤0.2%+10mA	USB/RS232/CAN/GPIB/LAN	2U
IT6527D	1000V	10A	3kW	100mV/1mA	≤0.05%+375mV ≤0.2%+10mA	USB/RS232/CAN/GPIB/LAN	2U
IT6532C	80V	240A	6kW	10mV/10mA	≤0.05%+30mV ≤0.2%+240mA	USB/RS232/CAN/GPIB/LAN	4U
IT6532D	80V	240A	6kW	10mV/10mA	≤0.05%+30mV ≤0.2%+240mA	USB/RS232/CAN/GPIB/LAN	4U
IT6533C	200V	120A	6kW	10mV/10mA	≤0.05%+100mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	4U
IT6533D	200V	120A	6kW	10mV/10mA	≤0.05%+100mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	4U
IT6534C	360V	60A	6kW	10mV/10mA	≤0.05%+135mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	4U
IT6534D	360V	60A	6kW	10mV/10mA	≤0.05%+135mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	4U
IT6535C	500V	40A	6kW	100mV/10mA	≤0.05%+200mV ≤0.2%+40mA	USB/RS232/CAN/GPIB/LAN	4U
IT6535D	500V	40A	6kW	100mV/10mA	≤0.05%+200mV ≤0.2%+40mA	USB/RS232/CAN/GPIB/LAN	4U
IT6536C	750V	30A	6kW	100mV/10mA	≤0.05%+300mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	4U
IT6536D	750V	30A	6kW	100mV/10mA	≤0.05%+300mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	4U
IT6537C	1000V	20A	6kW	100mV/1mA	≤0.05%+375mV ≤0.2%+20mA	USB/RS232/CAN/GPIB/LAN	4U
IT6537D	1000V	20A	6kW	100mV/1mA	≤0.05%+375mV ≤0.2%+20mA	USB/RS232/CAN/GPIB/LAN	4U
IT6542C	80V	360A	9kW	10mV/10mA	≤0.05%+30mV ≤0.2%+360mA	USB/RS232/CAN/GPIB/LAN	6U
IT6542D	80V	360A	9kW	10mV/10mA	≤0.05%+30mV ≤0.2%+360mA	USB/RS232/CAN/GPIB/LAN	6U
IT6543C	200V	180A	9kW	10mV/10mA	≤0.05%+100mV ≤0.2%+180mA	USB/RS232/CAN/GPIB/LAN	6U
IT6543D	200V	180A	9kW	10mV/10mA	≤0.05%+100mV ≤0.2%+180mA	USB/RS232/CAN/GPIB/LAN	6U
IT6544C	360V	90A	9kW	10mV/10mA	≤0.05%+135mV ≤0.2%+90mA	USB/RS232/CAN/GPIB/LAN	6U
IT6544D	360V	90A	9kW	10mV/10mA	≤0.05%+135mV ≤0.2%+90mA	USB/RS232/CAN/GPIB/LAN	6U
IT6545C	500V	60A	9kW	100mV/10mA	≤0.05%+200mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	6U
IT6545D	500V	60A	9kW	100mV/10mA	≤0.05%+200mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	6U
IT6546C	750V	45A	9kW	100mV/10mA	≤0.05%+300mV ≤0.2%+45mA	USB/RS232/CAN/GPIB/LAN	6U
IT6546D	750V	45A	9kW	100mV/10mA	≤0.05%+300mV ≤0.2%+45mA	USB/RS232/CAN/GPIB/LAN	6U
IT6547C	1000V	30A	9kW	100mV/1mA	≤0.05%+375mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	6U
IT6547D	1000V	30A	9kW	100mV/1mA	≤0.05%+375mV ≤0.2%+30mA	USB/RS232/CAN/GPIB/LAN	6U
IT6552C	80V	480A	12kW	10mV/10mA	≤0.05%+30mV ≤0.2%+480mA	USB/RS232/CAN/GPIB/LAN	15U
IT6552D	80V	480A	12kW	10mV/10mA	≤0.05%+30mV ≤0.2%+480mA	USB/RS232/CAN/GPIB/LAN	15U
IT6553C	200V	240A	12kW	10mV/10mA	≤0.05%+100mV ≤0.2%+240mA	USB/RS232/CAN/GPIB/LAN	15U
IT6553D	200V	240A	12kW	10mV/10mA	≤0.05%+100mV ≤0.2%+240mA	USB/RS232/CAN/GPIB/LAN	15U
IT6554C	360V	120A	12kW	10mV/10mA	≤0.05%+135mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	15U
IT6554D	360V	120A	12kW	10mV/10mA	≤0.05%+135mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	15U
IT6555C	500V	80A	12kW	100mV/10mA	≤0.05%+200mV ≤0.2%+80mA	USB/RS232/CAN/GPIB/LAN	15U
IT6555D	500V	80A	12kW	100mV/10mA	≤0.05%+200mV ≤0.2%+80mA	USB/RS232/CAN/GPIB/LAN	15U
IT6556C	750V	60A	12kW	100mV/10mA	≤0.05%+300mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	15U
IT6556D	750V	60A	12kW	100mV/10mA	≤0.05%+300mV ≤0.2%+60mA	USB/RS232/CAN/GPIB/LAN	15U
IT6557C	1000V	40A	12kW	100mV/1mA	≤0.05%+375mV ≤0.2%+40mA	USB/RS232/CAN/GPIB/LAN	15U
IT6557D	1000V	40A	12kW	100mV/1mA	≤0.05%+375mV ≤0.2%+40mA	USB/RS232/CAN/GPIB/LAN	15U
IT6562C	80V	600A	15kW	10mV/10mA	≤0.05%+30mV ≤0.2%+600mA	USB/RS232/CAN/GPIB/LAN	15U
IT6562D	80V	600A	15kW	10mV/10mA	≤0.05%+30mV ≤0.2%+600mA	USB/RS232/CAN/GPIB/LAN	15U
IT6563C	200V	300A	15kW	10mV/10mA	≤0.05%+100mV ≤0.2%+300mA	USB/RS232/CAN/GPIB/LAN	15U
IT6563D	200V	300A	15kW	10mV/10mA	≤0.05%+100mV ≤0.2%+300mA	USB/RS232/CAN/GPIB/LAN	15U
IT6564C	360V	150A	15kW	10mV/10mA	≤0.05%+135mV ≤0.2%+150mA	USB/RS232/CAN/GPIB/LAN	15U
IT6564D	360V	150A	15kW	10mV/10mA	≤0.05%+135mV ≤0.2%+150mA	USB/RS232/CAN/GPIB/LAN	15U
IT6565C	500V	100A	15kW	100mV/10mA	≤0.05%+200mV ≤0.2%+100mA	USB/RS232/CAN/GPIB/LAN	15U
IT6565D	500V	100A	15kW	100mV/10mA	≤0.05%+200mV ≤0.2%+100mA	USB/RS232/CAN/GPIB/LAN	15U
IT6566C	750V	75A	15kW	100mV/10mA	≤0.05%+300mV ≤0.2%+75mA	USB/RS232/CAN/GPIB/LAN	15U
IT6566D	750V	75A	15kW	100mV/10mA	≤0.05%+300mV ≤0.2%+75mA	USB/RS232/CAN/GPIB/LAN	15U
IT6567C	1000V	50A	15kW	100mV/1mA	≤0.05%+375mV ≤0.2%+50mA	USB/RS232/CAN/GPIB/LAN	15U
IT6567D	1000V	50A	15kW	100mV/1mA	≤0.05%+375mV ≤0.2%+50mA	USB/RS232/CAN/GPIB/LAN	15U
IT6572C	80V	840A	21kW	10mV/10mA	≤0.05%+30mV ≤0.2%+840mA	USB/RS232/CAN/GPIB/LAN	24U
IT6572D	80V	840A	21kW	10mV/10mA	≤0.05%+30mV ≤0.2%+840mA	USB/RS232/CAN/GPIB/LAN	24U
IT6573C	200V	420A	21kW	10mV/10mA	≤0.05%+100mV ≤0.2%+420mA	USB/RS232/CAN/GPIB/LAN	24U
IT6573D	200V	420A	21kW	10mV/10mA	≤0.05%+100mV ≤0.2%+420mA	USB/RS232/CAN/GPIB/LAN	24U
IT6574C	360V	210A	21kW	10mV/10mA	≤0.05%+135mV ≤0.2%+210mA	USB/RS232/CAN/GPIB/LAN	24U
IT6574D	360V	210A	21kW	10mV/10mA	≤0.05%+135mV ≤0.2%+210mA	USB/RS232/CAN/GPIB/LAN	24U
IT6575C	500V	140A	21kW	100mV/10mA	≤0.05%+200mV ≤0.2%+140mA	USB/RS232/CAN/GPIB/LAN	24U
IT6575D	500V	140A	21kW	100mV/10mA	≤0.05%+200mV ≤0.2%+140mA	USB/RS232/CAN/GPIB/LAN	24U
IT6576C	750V	105A	21kW	100mV/10mA	≤0.05%+300mV ≤0.2%+105mA	USB/RS232/CAN/GPIB/LAN	24U
IT6576D	750V	105A	21kW	100mV/10mA	≤0.05%+300mV ≤0.2%+105mA	USB/RS232/CAN/GPIB/LAN	24U
IT6577C	1000V	70A	21kW	100mV/1mA	≤0.05%+375mV ≤0.2%+70mA	USB/RS232/CAN/GPIB/LAN	24U
IT6577D	1000V	70A	21kW	100mV/1mA	≤0.05%+375mV ≤0.2%+70mA	USB/RS232/CAN/GPIB/LAN	24U
IT6582C	80V	960A	24kW	10mV/10mA	≤0.05%+30mV ≤0.2%+960mA	USB/RS232/CAN/GPIB/LAN	24U
IT6582D	80V	960A	24kW	10mV/10mA	≤0.05%+30mV ≤0.2%+960mA	USB/RS232/CAN/GPIB/LAN	24U
IT6583C	200V	480A	24kW	10mV/10mA	≤0.05%+100mV ≤0.2%+480mA	USB/RS232/CAN/GPIB/LAN	24U
IT6583D	200V	480A	24kW	10mV/10mA	≤0.05%+100mV ≤0.2%+480mA	USB/RS232/CAN/GPIB/LAN	24U
IT6584C	360V	240A	24kW	10mV/10mA	≤0.05%+135mV ≤0.2%+240mA	USB/RS232/CAN/GPIB/LAN	24U
IT6584D	360V	240A	24kW	10mV/10mA	≤0.05%+135mV ≤0.2%+240mA	USB/RS232/CAN/GPIB/LAN	24U
IT6585C	500V	160A	24kW	100mV/10mA	≤0.05%+200mV ≤0.2%+160mA	USB/RS232/CAN/GPIB/LAN	24U
IT6585D	500V	160A	24kW	100mV/10mA	≤0.05%+200mV ≤0.2%+160mA	USB/RS232/CAN/GPIB/LAN	24U
IT6586C	750V	120A	24kW	100mV/10mA	≤0.05%+300mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	24U
IT6586D	750V	120A	24kW	100mV/10mA	≤0.05%+300mV ≤0.2%+120mA	USB/RS232/CAN/GPIB/LAN	24U
IT6587C	1000V	80A	24kW	100mV/1mA	≤0.05%+375mV ≤0.2%+80mA	USB/RS232/CAN/GPIB/LAN	24U
