Features

♦ Bi-directional – power supply and electronic load in one
♦ Stand-alone max. output power 144kW, expandable up to 1.152 MW by paralleling
♦ Voltage range: 0 to 2250V
♦ Current range: 0 to 2040A
♦ High power density up to 18kW in compact 3U rack space
♦ Bi-directional power transfer, seamless switch between sourcing and sinking
♦ High regenerative efficiency up to 95%

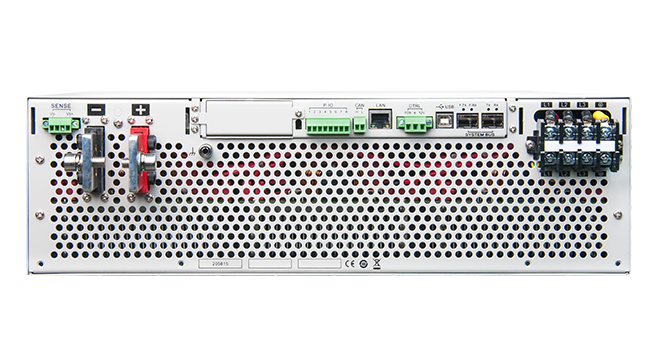

♦ Standard Built-in USB/CAN/LAN/digital IO communication interface, optional GPIB/analog & RS232
♦ Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
♦ Support control loop priority mode setting , different loop speed can be set
♦ Built-in voltage curves comply with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO21848 automotive standards
♦ Support photovoltaic I-V curves simulation function
♦ Built-in function generator, support arbitrary-waveform generating
♦ Adjustable output impedance

Bi-directional energy, seamless transfer

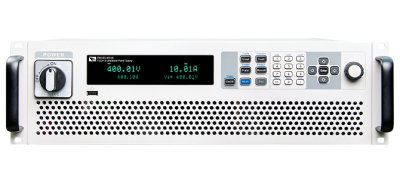

The IT6000C Series combines bi-directional power supply and regenerative load function in one. Unlike traditional power supplies and E-loads, for which there will be short transitions and inconsistencies in the middle of positive and negative current switching, IT6000C is a standard high-speed bidirectional power supply, enables high-speed source and sink current fast and continuous seamless switching, effectively avoiding voltage or current overshoot, and can be widely used in Energy storage device test, like batteries, cell packaging equipment and battery protection board testing .

High energy regenerative efficiency

The IT6000C series has a unique energy regenerative function that can regenerate electrical energy and then directly use it in the plant instead of consuming it in the form of heat. The regenerative efficiency can reach up to 95%, which not only will greatly reduce the user's electricity cost, but also avoid the using of air conditioning or expensive cooling systems.

Application for solar array simulation

IT6000C configured with optional ITECH SAS1000 Solar Array Simulation Software, users can easily use the software to output, measure, display the MPP tracking status of photovoltaic inverter in real time simulation and record value. Built-in EN50530 / Sandia NB/T32004 / C GC/GF004 /CGC/GF035 standard testing procedures, it is convenient for users to test the static and dynamic MPPT performance of PV inverters and generate reports. Solar simulation power supply also provides the shadow and table mode operation, the user can enter up to 4096 points array to edit any shielded IV curve to achieve dynamic shadow effect simulation and also can store 100 I-V curves under different irradiation and temperature to test the long-term maximum power tracking performance of photovoltaic inverters under different climatic conditions.
