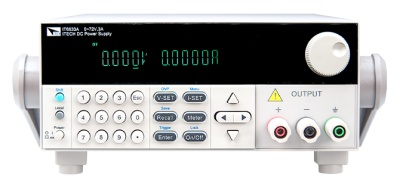

해상도가 1mV / 0.1mA 인 IT6800 단일 채널 프로그래밍 가능 DC 전원 공급 장치 (180W-216W), 사용자는 전면 패널 OVP / OTP 보호를 통해 왼쪽 및 오른쪽 키를 눌러 커서와 프로그램을 이동하여 전압 / 전류 스테핑을 조정할 수 있습니다. IT6800은 타이머 기능을 지원하며 내장 된 RS232 및 USB 통신 인터페이스는 편리한 테스트 경험을 제공합니다.
♦ Support panel programming, numeric keypad operation
♦ High accuracy and resolution 1mV/0.1mA
♦ Outputs according to the programmed voltage and current values
♦ Adjust the voltage and current via knob
♦ Lower ripple and noise
♦ Remote sense

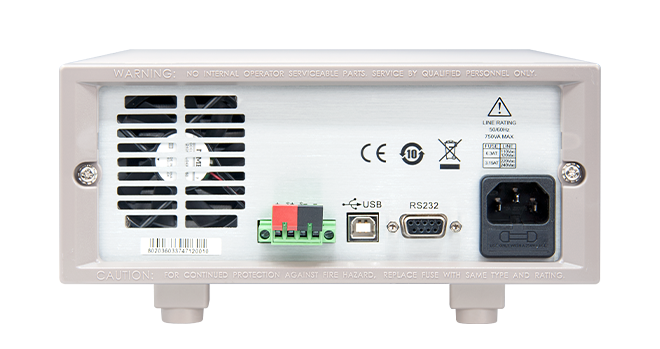

♦ Built-in RS232 / USB/ GPIB interface *1
♦ Intelligent fan control, save energy and reduce noise
*1 Built-in GPIB is available with IT6800B series only
The IT6800A Series single channel Programmable DC Power Supply generates a variety of output change sequences by sequentially operating each single step value and time. The parameters in the sequence include time units, single-step voltage, single-step current, single-step time, and the next step , looping steps, saving files, and so on. After the sequential operation is completed, when a trigger signal is received, the power is turned on until the sequence operation is completed or another trigger signal is received again.
Remote sense function
In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object.
Output timer
IT6800A/B series supports Output timer function，users can start this function in the Menu and set the time. The timers starts working when the unit is powered on. The unit will automatically turn off the output when the set time is due. Timing time setting range 0.1 - 9999.9S or 0.1 - 9999.9M.
CD (accessory)With user manual and communica...
AC power cord (accessory)AC power cord (accessory)
IT-E151A (Optional)19'' Rack mount kit
IT-E151 (Optional)19'' Rack mount kit
IT-E30110-AB (Optional)10A/1m/Alligator clip - Banana...
IT-E30110-BB (Optional)10A/1m/Banana plug - Banana pl...
IT-E30110-BY (Optional)10A/1m/Banana plug - Y termina...
