DC Power Supply

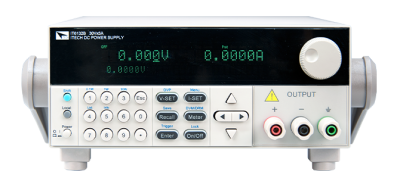

IT6100B Programmable DC Power Supply

IT6100B 시리즈 (86 ~ 1200W) 고속 고정밀 프로그래밍 가능 DC 전원 공급 장치는 초 고전압 상승 시간, 최대 500us의 가장 빠른 풀 부하, 최대 0.1mV / 0.01mA의 분해능, 최신 출력 파형 우선 모드로 전압 또는 전류의 파형 상승 가능 전력 모듈 및 기타 고정밀 테스트 상황에서 널리 사용되는 고속 및 오버 슈트가 없습니다. IT6100B에는 표준 USB / RS232 / GPIB 통신 인터페이스가 내장되어 있으며 패널은 List 프로그래밍을 지원하여 고객 설계 및 테스트 요구에 따라 사용하기 쉬운 다목적 솔루션을 제공 할 수 있습니다.

Product
catalog

User's
Manual

Specification

Product Features

♦ Output linear adjustment, high speed reliable, low noise

♦ High accuracy and resolution

♦ High voltage rising edge

♦ Built-in 5½ digital voltmeter and Ohmmeter

♦ Memory capacity: 100 groups

♦ List mode

♦ Timer function (0.01~60000S)

♦ Remote sense interface to compensate line voltage

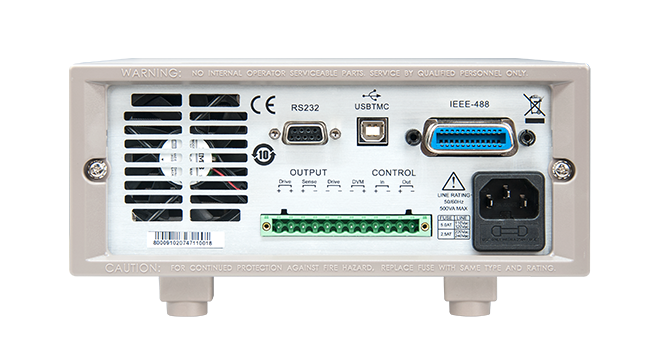

♦ Built-in RS232/USB/GPIB interface and support SCPI protocol

Functions and Advantages

High voltage rise speed
Comparing with general high speed power supplies, IT6100B series power supplies reduce their ripple and noise to the lowest level.Their high voltage rise speed (<20mS) suits for all high speed and precise testing occasions.

Digital voltage ohmmeter

IT6100B series has built-in precision digital voltage ohmmeterDigital ohmmeter: Provide four-wire method to measure resistance, measurement range: 0 ~ 1KΩ
Digital voltmeter: A 5½ voltmeter is provided to measure the external voltage, measurement range: 0 ~ 40V

Options & Accessories

CD (accessory)
With user manual and communica...
USB
For USB port communication
AC power cord (accessory)
AC power cord (accessory)
IT-E151A (Optional)
19'' Rack mount kit
IT-E151 (Optional)
19'' Rack mount kit
IT-E30110-AB (Optional)
10A/1m/Alligator clip - Banana...
IT-E30110-BB (Optional)
10A/1m/Banana plug - Banana pl...
IT-E30110-BY (Optional)
10A/1m/Banana plug - Y termina...
IT-E30312-YY (Optional)
30A/1.2m/Y terminal, a pair of...
IT-E30320-YY (Optional)
30A/2m/Y terminal, a pair of r...
IT-E30615-OO (Optional)
60A/1.5m/round terminal, a pai...

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6121B	20V	5A	100W	0.1mV/0.01mA	±0.02%+3mV/ ±0.05%+2mA	RS232/USB/GPIB	½ 2U
IT6122B	32V	3A	96W	0.1mV/0.01mA	±0.02%+3mV/ ±0.05%+2mA	RS232/USB/GPIB	½ 2U
IT6123B	72V	1.2A	86.4W	0.1mV/0.01mA	±0.02%+5mV/ ±0.05%+1mA	RS232/USB/GPIB	½ 2U
IT6132B	30V	5A	150W	0.1mV/0.01mA	±0.02%+3mV/ ±0.05%+2.5mA	RS232/USB/GPIB	½ 2U
IT6133B	60V	2.5A	150W	0.1mV/0.01mA	±0.02%+5mV/ ±0.05%+1.5mA	RS232/USB/GPIB	½ 2U
IT6162B	20V	50A	1000W	1mV/1mA	≤0.02%+2mV/ ≤0.05%+15mA	RS232/USB/GPIB	2U
IT6164B	Range1:30V；Range2:60V；	Range1:40A；Range2:20A；	Range1:1200W；Range2:1200W；	1mV/1mA	≤0.02%+5mV/ ≤0.05%+15mA	RS232/USB/GPIB	2U
