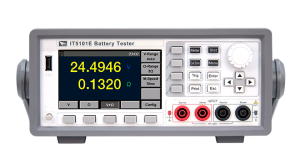

IT5100 시리즈는 고정밀, 고해상도 및 고속의 일련의 배터리 내부 저항 테스터입니다. IT5100은 AC 4단자 감지를 채택하고 있습니다. 즉, 테스터가 내부 저항과 전압을 동시에 높은 정밀도로 테스트할 수 있습니다. 저항 분해능은 0.1μΩ, 전압 분해능은 10μV입니다. 외부 USB 디스크와 결합된 IT5100은 장기 통계 계산에 사용할 수 있습니다.내장된 비교기 기능인 IT5100은 배터리 파라미터가 표준 및 카운트 패스 속도를 충족하는지 여부를 자동으로 판단할 수 있어 다양한 배터리 테스트 및 선택에 적합합니다. SCPI 통신 프로토콜을 지원하는 내장 GPIB/USB/LAN 통신 인터페이스입니다.IT5102의 단일 단위는 16채널 배터리 측정, 최대 17세트까지의 마스터-슬레이브 연결 및 272개의 확장 채널 수량을 지원하여 테스트 효율성을 크게 향상시킵니다. 내장 LAN/RS232 통신 인터페이스인 IT5100 시리즈는 휴대폰 리튬 배터리, 전기차 배터리 및 기타 배터리 검사 및 정렬에 광범위하게 적용될 수 있습니다.
Features
♦ Support resistance & voltage simultaneously test and display, 4.3 inch LCD screen
♦ Voltage ranges:10 μV~300 V *2
♦ Resistance ranges: 150 μΩ~3000 Ω *1
♦ voltage ranges,7 resistance ranges, optional automatic or mannu measuring *3
♦ Support resistance & voltage simultaneously test, speed up to 125 times / S *4
♦ Built-in GPIB, USB, LAN interfaces,supports SCPI protocol.
♦ Statistics calculation and data USB storage function
♦ Comparator function: sorting result HI/IN/LOW display
♦ Zero adjustment function
♦ 4-terminal AC measurement
♦ Measuring result alarm
♦ IT5102 single unit supports 16 channels testing, max.17 sets master and slave extension connection *5
♦ Supports battery online testing *6
♦ Available for supporting ITS5300 battery charging & discharging test system automatic measurement.
*1：IT5101E is 15mΩ ～ 3Ω， IT5102/5102E is 0.01mΩ～2Ω
*2：IT5102/5102E is 0～60V
*3：IT5101E、IT5102/5102Eresistance is the two range
*4：IT5101/5101E under Ex_Fast mode
*5：IT5102E is 8 channels
*6：IT5101/5101E only support offline measurements,IT5102/5102E support both online and offline measurements at the same time.
Application
♦ High-voltage battery pack test e.g. electric vehicles, lithium battery etc.
♦ Battery module testing
♦ Large (low-resistance) cell testing
♦ High-speed mass production testing of coin batteries
♦ UPS inspection
♦ Deterioration & life assessment of alkaline batteries, lead-acid battery Various contact resistance test
♦ Equivalent Series Resistance (ESR) test
4-terminal AC Measurement
Toavoid the influence caused by testing wire and ensure test precision, IT5101 and IT5101E adopt AC 4-terminal sensing. This means the tester can test not only internal resistance and voltage simultaneously with high precision, but also support long-term statistical calculations.
Statistics calculation & Measurement setting configurations storage
Combined with an external USB disk, IT5101 can be used for statistical calculation, which greatly simplifies the process and provides convenience to quality control.
The data storage capacity up to 1000 groups, maximum measurement setting configurations storage capacity up to 126 pcs. And the measurement data of IT5100 series can be stored as .csv file.
Optional accessories
ITECH provides multiple optional accessories for IT5100 series battery testers, including 4 types of testing wires with different probes and zero adjustment board.
CD (accessory)With user manual and communica...
AC power cord (accessory)AC power cord (accessory)

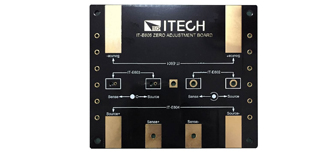

IT-E605 (Optional)Zero plate
IT-E604 (Optional)Black straight plug - General ...
IT-E603 (Optional)Black straight plug - taper he...

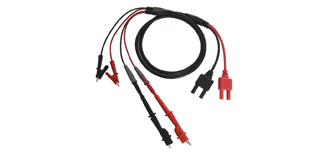

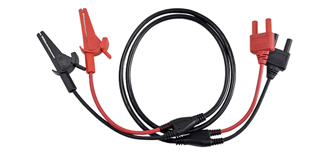

IT-E602 (Optional)Black straight plug - alligato...
IT-E601 (Optional)Black straight plug - crown ro...
