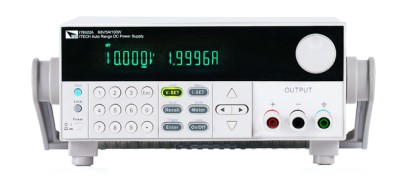

IT6900A 시리즈 광범위한 프로그래밍 가능 전원 공급 장치에는 표준 RS232, USB, GPIB, RS485 및 아날로그 인터페이스 (RS485 및 아날로그 인터페이스는 IT6900B 전용)가 내장되어 있으며 SCPI 프로토콜을 지원하고 원격 제어, 산업용 PLC 제어 및 지능형 테스트 형성을 용이하게합니다. 플랫폼. 원격 보상 단자는 전선의 전압 강하로 인한 부정확 한 테스트 문제를 방지합니다. 낮은 리플, 저잡음 및 내장 디지털 전압계를 통해 IT6900A는 외부 측정을 쉽게 수행 할 수 있습니다. IT6900A는 DC-DC 전원 공급 장치 모듈, 배터리 충전 및 센서 및 기타 테스트 영역에 널리 적용될 수 있습니다.
♦ VFD display
♦ Adjust voltage and current via knob or numerical key pad
♦ High accuracy and high resolution
♦ Adjust digital step value via cursor
♦ Output according to voltage and current programed
♦ Output Timer(0.1 ~ 99999.9S) Function
♦ Low ripple and low noise
♦ Remote Sense Function
♦ OVP/OCP/OTP protection fucntions
♦ Intelligent fan control
♦ Rich SCPI instructions to facilitate the formation of intelligent test platform
♦ Support front and rear panel output
♦ Optional external analog function

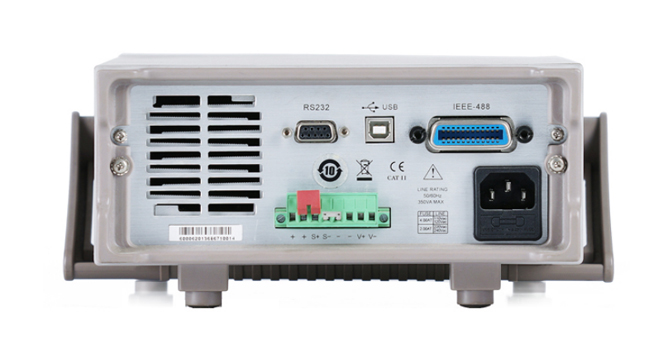

Remote sense function
In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object.List function
Auto Range
IT6900A series power supply has adopted Auto-range technology. One unit could replace multiple units with different specifications.Take IT6932A(60V/10A/200W),as an example,the user could used as a 60V/3.3A/200W instruments and also a 20V/10A/200W unit.
CD (accessory)With user manual and communica...
USBFor USB port communication
AC power cord (accessory)AC power cord (accessory)
IT-E151A (Optional)19'' Rack mount kit
IT-E30110-AB (Optional)10A/1m/Alligator clip - Banana...
IT-E30110-BB (Optional)10A/1m/Banana plug - Banana pl...
IT-E30110-BY (Optional)10A/1m/Banana plug - Y termina...
IT-E30312-YY (Optional)30A/1.2m/Y terminal, a pair of...- IT-E30320-YY (Optional)30A/2m/Y terminal, a pair of r...
