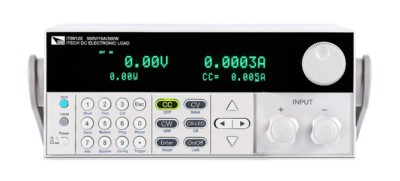

IT8900 시리즈 고정밀 LED 특정 테스트 전자 부하는 다양한 특성을 가진 LED 조명의 실제 출력을 시뮬레이션 할 수 있습니다. 그들의 특정 회로는 CR-LED 모드, 가변 주파수, 듀티 비 PWM 디밍 출력 포트 (주파수 : 20Hz-2KHz), I-를 실현할 수 있습니다. pp / I-max 측정 기능은 전류 리플을 테스트하고 LED 정류 소스의 서지 전류를 시작할 수 있습니다. 전압 및 전류 테스트 속도는 50KHz에 도달 할 수 있습니다. IT8900 시리즈는 CR-LED / CC / CV + CC / CR / CW 및 기타 작업 모드, 내장 USB / RS232 / GPIB 통신 인터페이스를 제공합니다.LED 드라이버 전원 조광 테스트에 널리 사용됩니다.
Feature
♦ Up to 20KHz CC dynamic mode
♦ Voltage / current measurement speed up to 50KHz
♦ Various working modes for choice. CR-LED/CC/CV+CC/CR/CW etc.
♦ Unique CR-LED mode, providing the perfect PWM-LED Driver test solution
♦ Easy programmable parameter setting,applicable for simulating LED lights with different characteristics
♦ Automatically determine whether the test results beyond the set specifications according to high / low limit specifications of the test parameters
♦ Adjustable frequency,duty ratio PWM dimming output port
♦ I-pp/I-max measurement function can test current ripple and start up surge current of LED constant flow source

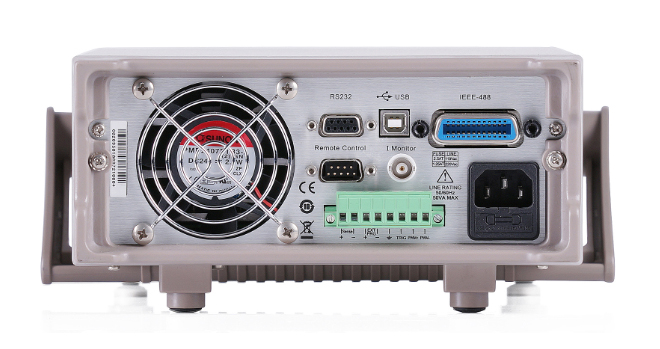

♦ Built-in USB/RS232/GPIB
CR-LED mode
The unique CR-LED mode developed by IT8900 series is especially applicable for LED driver test.The user only needs to set the operating voltage,current and coefficient of LED driver to obtain real output parameter of LED driver.Different from universal electronic load,this mode of IT8900 series adopts pure hardware circuit design without software operation by MCU module,thus increasing the speed and stability of CR mode control circuit,solving voltage and current jitter during LED driver test,increasing frequency width and helping realize PWM dimming.
USBFor USB port communication
CD (accessory)With user manual and communica...
AC power cord (accessory)AC power cord (accessory)
IT-E151 (Optional)19'' Rack mount kit
IT-E151A (Optional)19'' Rack mount kit
IT-E30312-YY (Optional)30A/1.2m/Y terminal, a pair of...- IT-E30320-YY (Optional)30A/2m/Y terminal, a pair of r...
| Model | Voltage | Current | Power | Resolving | Accuracy | Interface | Size | |
|---|---|---|---|---|---|---|---|---|
| IT8912E | 500V | 15A | 300W | 10mV/0.1mA | ±(0.05%+0.05%FS) | USB/RS232/GPIB | ½ 2U |
