DC Electronic Load

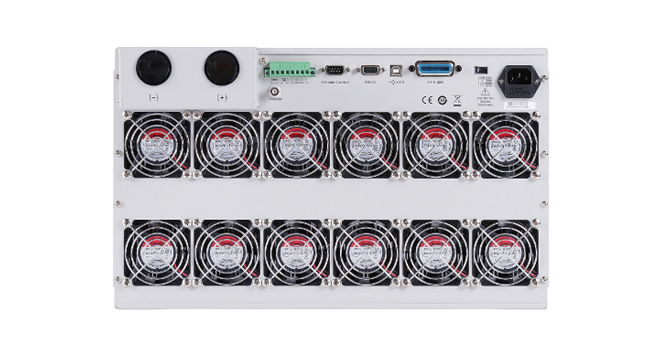

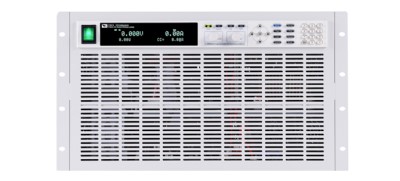

IT8800 High Power DC Electronic Load

IT8800 시리즈는 150W~10KW의 넓은 전력 범위, 최대 50KHz의 전압 및 전류 측정 속도, 최대 0.1mV/0.01mA의 분해능, 0.001A/us~2.5의 조정 가능한 측정 전류 상승 속도를 제공합니다.A/us, 내장 RS232/GPIB/USB 인터페이스입니다. IT8800 시리즈는 고성능 제품이라 응용 분야가 넓으며 LED 조명, 자동차 전자제품 등 다양한 분야에 적용되고 있습니다.

Product
catalog

User's
Manual

Specification

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT8811	120V	30A	150W	1 mV/0.1mA	±(0.05%+0.025%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	½ 2U
IT8812	120V	30A	250W	1 mV/0.1mA	±(0.05%+0.025%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	½ 2U
IT8812B	500V	15A	200W	1 mV/0.1mA	±(0.05%+0.025%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	½ 2U
IT8812C	120V	60A	250W	1 mV/0.1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	½ 2U
IT8813	120V	60A	750W	1 mV/0.1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	3U
IT8813B	500V	30A	750W	1 mV/0.1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	3U
IT8813C	120V	120A	750W	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)	RS232/USB/GPIB	3U
IT8814	120V	120A	1.5kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)	RS232/USB/GPIB	3U
IT8814B	500V	60A	1.2kW	1 mV/0.1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)	RS232/USB/GPIB	3U
IT8816	120V	240A	3kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	3U
IT8816B	500V	100A	2.5kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	3U
IT8817	120V	360A	4.5kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)	RS232/USB/GPIB	6U
IT8817B	500V	120A	3.6kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	6U
IT8818	120V	480A	6kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)	RS232/USB/GPIB	6U
IT8818B	500V	150A	5kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	6U
IT8819H	800V	80A	7.5kW	1 mV/1mA	±(0.05%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	12U
IT8830	120V	500A	10kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)	RS232/USB/GPIB	12U
IT8830B	500V	200A	10kW	1 mV/1mA	±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	12U
IT8830H	800V	100A	10kW	1 mV/1mA	±(0.05%+0.05%FS)/ ±(0.05%+0.05%FS)	RS232/USB/GPIB	12U
